The electrically heated catalytic converter from BENTELER ensures for almost 100% pollutant removal during cold starts in all cars with internal combustion engines. It is already in compliance with the strict pollutant requirements of the EU-7 standard.
The European Union vehicle emission requirements are becoming increasingly stringent. The EU-7 standard, which will come into force at the latest in 2025, will require car manufacturers to make further significant reductions in pollutants. With electrically heated catalysts from BENTELER, car manufacturers can benefit from an almost complete reduction of pollutant emissions during a cold start. In cooperation with electronics specialist Silver Atena, BENTELER will also offer a coordinated system with a control unit.

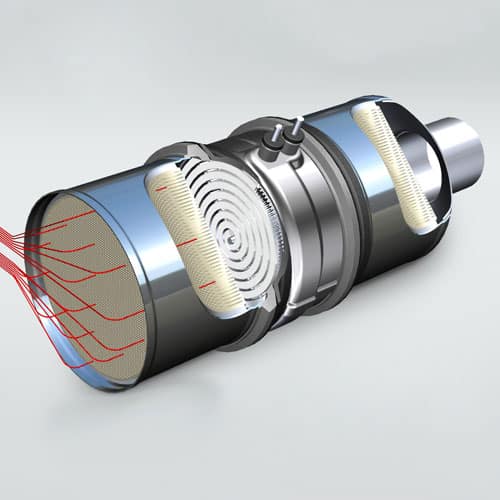

The electrically heated catalyst ensures that the exhaust system quickly reaches its optimum operating temperature during a cold start. As a result, almost 100% of pollutants are removed from the exhaust gases. This plays an important role in the context of the pollutant tests, especially given future driving cycles where greater weight will be applied to the cold start phase. BENTELER’s electrically heated catalytic converter consists of a stacked metal structure welded into the exhaust system between the turbocharger and the conventional catalytic converter. It is suitable for all cars with internal combustion engines – regardless of whether they are petrol, diesel or hybrid.
Manufacturing electrically heated catalysts calls for expertise in forming and high-temperature brazing – technologies that BENTELER counts among its core competencies. As an experienced partner to the automotive industry, the metal processing specialist can produce the product in large numbers – worldwide. “With our electrically heated catalysts we’re paving the way for car manufacturers in the direction of low emission vehicles,” explains Dr. Rainer Lübbers, Executive Vice President of BENTELER’s Business Unit Engine and Exhaust Systems. “As a result, we’re making a further contribution to sustainable mobility.”
Cooperation with Silver Atena for a matched system solution
In cooperation with electronics specialist Silver Atena, BENTELER will also offer a coordinated system with a control unit. This regulates, amongst other things, the temperature in the catalytic converter. Car manufacturers benefit from the cooperation. The optimal interaction of the electrically heated catalyst from BENTELER and control units from Silver Atena means fewer interfaces – customers get pre-validated solutions that can be quickly adapted to their respective needs. The system from BENTELER and Silver Atena is modular and doesn’t depend on a special system environment such as a specific installation space, a predefined catalyst type or higher-level control units.
“The cooperation with BENTELER shows once again how customers benefit from cooperations in the automotive industry,” says Josef Mitterhuber, Managing Director of Silver Atena: “Together we offer car manufacturers a solution that means they don’t need to worry about the EU-7 standard.”
EU-7 standard tightens CO2 limits and reduces permissible exhaust emissions
Although the number of electric vehicles in Europe is increasing, the majority of cars still use combustion engine technology. To enable more sustainable mobility in this area, BENTELER also develops environmentally friendly and future-proof products that already comply with the emission levels the EU intends to make mandatory in a few years.
Exact specifications from the EU-7 standard have not yet been established. Nevertheless, car manufacturers will once again be faced with the challenge of reducing exhaust pollutants by half. The new EU-7 standard will also require the car’s exhaust system to perform a high level of pollutant cleaning immediately after the engine is started. According to current information, the EU-7 standard will be introduced by 2025 at the latest. Given the multi-year development time required for vehicles, this is already impacting automobile manufacturers.
Contact:
BENTELER Automotive
Eugen Aul
Director Business Development
Business Unit Engine & Exhaust Systems
Paderborn, Germany
Phone: +49 5254 81 308290
E-Mail: eugen.aul@benteler.com
Profile:
BENTELER is a global, family-owned company serving customers in automotive technology, the energy sector and mechanical engineering. As innovative partner, BENTELER designs, produces and distributes safety-relevant products, systems and services.
Silver Atena offers comprehensive solutions as premium development partner and hightech supplier of prototypes and small series in the field of safety-relevant systems and power electronics.
